Product Ranges -
3 phase Inverter Speed Control
VES offer a range of speed control options to suit fan-motor and application requirements.
All our speed controllers can be provided loose for wall mounting or incorporated within the overall controls package or air handling unit - reducing the need for site installation and commissioning.
IP54 with comprehensive functions:
- Complete with standard operational key pad or optional advanced key pad with built-in time clock.
- IP54 protection for indoor or external use.
- Features include BMS control, remote manual controller, temperature, constant pressure, humidity and CO2/VOC control.
- Main isolating switch with lockable handle.
- Panel live switch with lockable handle.
- Damper control.
- Volt free run and trip indication.
- Easy customer installation.

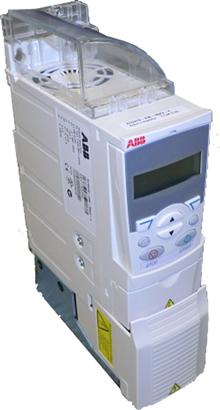

Low cost IP21:
- Complete with operational key pad.
- IP21/NEMA1 protection for indoor use.
- Features include on/off control at inverter key pad and manual controller available (CFSC1) for remote speed adjustment.
<< Back to top
CPA Range
The CPA range is specifically designed for air handling units requiring remote or room unit control, with applications suitable for individual supply and, or extract systems.
Features:
- Single or three phase electric thyristor or LPHW modulating heating control.
- Optional versatile LCD room unit with built in temperature sensor and timers.
- Adjustable control parameters to suit individual applications.
- Extensive built-in safety features.
- Value and performance.
- Compatible with speed controller and air quality sensor for energy efficient demand ventilation solution (BlueSense).
<< Back to top
CPB Range
The CPB Range is specifically designed for use in entry level heat recovery applications. The control system can be supplied in a standalone enclosure or fully integrated in a supply or heat recovery air handling unit.
Features:
- Single or three phase electric Thyristor or LPHW modulating heating control.
- Versatile panel mounted LCD display with adjustable control parameters to suit individual applications.
- Optional remote user interface available.
- Extensive built in safety features; isolation, airflow monitoring and thermal cut-out.
- Heat recovery control for use with plate heat exchanger, 3 way mixing box or heat wheels.
- Compatible with speed controller and air quality sensor for an energy efficient demand ventilation solution.
<< Back to top
CPC Range
The CPC Range is specifically designed for air handling units and has a powerful pre-programmed digital controller that utilises intelligent software for flexibility and optimising performance.
Features:
- Simple BMS interface or communication through Modbus and BACnet.
- Intelligent start time offset adjusted in response to outside temperature.
- Intuative user access for operation and commisionning.
- Compatible with speed controller and air quality sensor for energy efficient demand ventilation solution.
- Energy monitoring and optimisation providing real- time energy consumption, heat recovery efficiency and automatic parameter adjustment between Comfort and Economy; setpoint, deadband, air quality, fan speed, optimal start/stop etc.
<< Back to top
CPE Range
The compact range offers standard designs for wall mounting, that are simple to install and operate.
Features:
- Single phase supply amd extract fan starter.
- Stepped single phase electric heating.
- 7 day time clock.
- On board temperature adjustment.
- Duct sensor or optional room sensor.
Electric Heating Options (Max):
- CPE1 - 3kW 1x1.
- CPE4 - 12kW 4x1 (1PH or 3PH supply).
- CPE9 - 27kW 9x1 (1PH or 3PH supply).
<< Back to top
CPW Range
The compact range offers standard designs for wall mounting, that are simple to install and operate.
Features:
- Single phase supply and extract fan starter.
- LPHW heating with frost protection.
- 7 day time clock.
- Panel mounted temperature adjustment.
- Duct sensor or optional room sensor.
<< Back to top
HMI's
VES offers touch screen HMI's (Human Machine Interface) for a comprehensive way to display and adjust important information from your factory-mounted controllers.
We provide standard solutions that comprise a 3.4" mono or 3.8" colour touch screen, however these screens are fully customisable and can be supplied up to 15" for complex applications, if required.
- Suitable for internal or external, room or panel mounting.
- Defined password levels.
- Sensor display and measurement for given application - temperature, humidity, pressure, air quality.
- Control adjustments; setpoint, fan speed, PID control loop, detailed alarm management.
- Plant schematic, trending and data analysis.
<< Back to top
Room Controllers
LCD room unit, with built in application processor provides adjustable commissioning and control parameters for simplistic HVAC applications.
- The LCD room unit is very versatile, comprising a large display and intuitive operating concept with setting knob and large buttons.
- Extremely user-friendly and the backlit display even allows the unit to be operated in the dark.
- The required application and parameter settings can simply be selected via DIP switches before mounting the unit.
- The room unit uses the built in room temperature for 2 position P (Proportional) or PI (Proportional-Integral) algorithms.
- Built temperature sensor and 7 day time clock.
- Numerous energy saving features include comfort and economy mode, sensor calibration and set point limitations, control loop adjustments and button lock for setting protection.
<< Back to top
Room Units
VES provide a variety of room units to meet every requirement, from simple On/Off to more complex unit with extensive features and adjustments.
- Easy to understand symbols, optional LCD display as well as large keys and adjustment knobs are just a few features to ensure straight forward operation.
- Energy-efficient and cost saving control can be accomplished by time based schedules, comfort levels and PID (Proportional-Integral-Derivative) tuning.
- Simple operation and high control accuracy for optimal comfort and ease of use.
- Fast and easy installation and commissioning.
- High quality products, consistent feel and look, providing individual or multi-zone control.
<< Back to top
Sensors
VES provides a wide range of measurement sensors for a variety of applications, providing an optimal base for precise and therefore energy and cost-saving control of the entire HVAC system.
Features
- Temperature, Humidity, Air Quality, CO2, Pressure.
- Wide choice of products covering all installation environments.
- Innovative designs for simple installation.
- High degree of accuracy and reliability for extended life cycle and long term stability.
<< Back to top
Traditional Speed Controllers
VES offer a range of speed control options to suit fan-motor and application requirements.
1 phase: Manual
- Tapped transformer type in five steps and Off, or electronic variable speed type.
1 phase: Automatic
- The MS 10 speed controller will modulate providing automatic fan speed control via a 0-10dc signal from BMS, eg Air Quality or Temperature Sensor.
3 phase: Manual
- Tapped transformer type in five steps and Off, or electronic variable speed type.
<< Back to top
